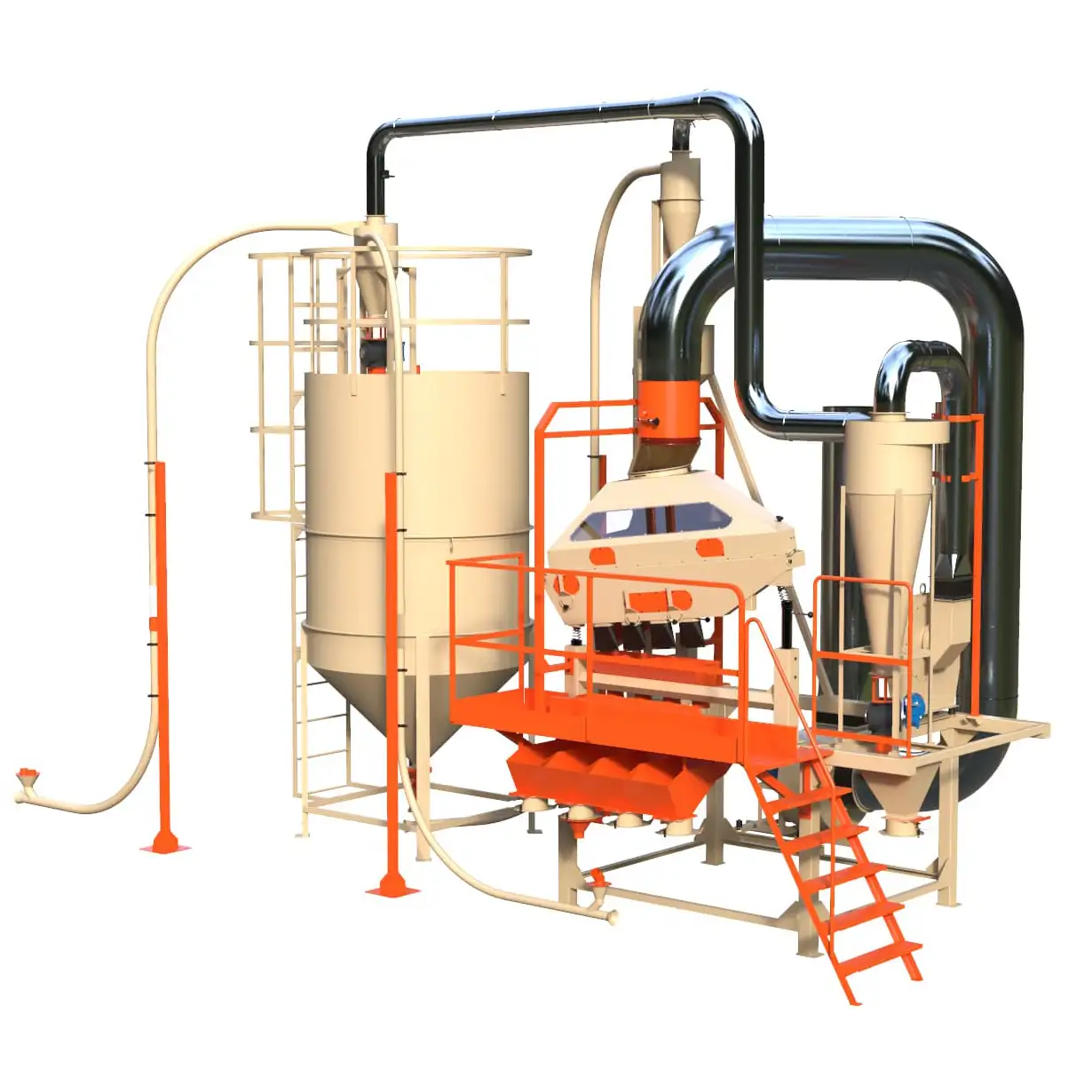

Aggregate multi-purpose groats mill OPTIMATIK-K-15
3D
The OPTIMATIK-K-15 is a multipurpose groats mill, that has been designed for processing crops like wheat, barley, peas, corn, and millet into groats. The design and equipment of the groats plant ensure the yield and quality of groats are not lower than the requirements of the current standards, which allows to meet the requirements of the modern market.
Product video
Product Description
Specifications
Аdvantages
Video/Photo
Additional Information
Описание
Описание
Олис
Олис
Purpose:
The OPTIMATIK-K-15 is a multipurpose groats mill, that has been designed for processing crops like wheat, barley, peas, corn, and millet into groats. The design and equipment of the groats plant ensure the yield and quality of groats are not lower than the requirements of the current standards, which allows to meet the requirements of the modern market.
The OPTIMATIK-K-15 is a multipurpose groats mill that is supplied with a metal framework, ladder and service platform, hoppers, an aspiration system, a pneumatic conveying system, an electric part, and automatics. Since the manufacture of the groats mill passes the stage of the control assembly, its complete assembly and commissioning at the place of operation take no more than three days. In this case, the need for cutting, welding and drilling of metal at the place of assembly is completely eliminated.
The groats mill operates in automatic mode. The operator controls the operation of the groats mill from the central control panel.
Specifications
Assortment, output and productivity
*with partial germ removing;
*millet grade is determined by the class of processed millet
Groats name
Actual output, %
GOST, output, %
Productivity, kg ( input grain)
Pearl barley, numbered
65-70
45
400
Fine-ground barley of the 3d numbered
70-74
65
700
Wheat polished groats, numbered
80-85
63
700
Wheat crushed groats of the 3d numbered
67073
60
800
Peas polished, split and whole
77-82
77
700
Peas polished, split
65-70
not provided
700
Corn groats
50-55
12-15
40
12
600
Millet groats
60-65
60
400
Characteristics
Model
OPTIMATIK-K-15
Installed power capacity, kW
30
The average consumption of electricity per ton of processed grain, kW
26
Service personnel, persons
1
Area to accommodate and maintenance, m2
17
Required ceiling height up to, m
5
Power
3-phase alternating current
Voltage, 380W, 50Hz
Voltage, 380W, 50Hz
Dimensions, mm:
2800
3000
5450
3000
5450
Main intra-workshop transport
pneumatic transport
Weight, kg
2700
The composition of the multipurpose groats mill
№
Equipment name
Quantity, pcs.
1.
Block peeling and chopping of
1
1.1.
Silo Operations
1
1.2.
Shelling-grinder Cascade-0,6
1
1.3.
Chopper DCM-0,8
1
1.4.
Magnetic column MK-1
2
2.
Block fractionation of
1
2.1.
Sifter BM-1,2
1
2.2.
Aspiration column AK-200
4
2.3.
Bunker finished products
5
2.4.
Device of beat
5
3.
The system of aspiration and pneumatic
kit
4.
Electrical and Automation
kit
5.
Bearing metal
kit
Grain manufactory may be additionally equipped with a purification unit: Number of 1pc. comprising:
№
Equipment name
Quantity, pcs.
1.
Silo Operations
1
2.
Dispensing unit
1
3.
Magnetic column MK-1
1
4.
Sieve-air separator SHS-3
1
5.
Aspiration system
1
Аdvantages
- The highest output and quality of groats in the class of small capacity multipurpose groats mill.
- Possibility of quick adjustment in case of changing the type of processed grain or the type of groats to be processed.
- The basic configuration can be supplemented with options, which significantly increase the possibilities of processing (additional cleaning, splitting of peas, grain enrichment, etc.).
- Compactness and low power consumption, which allows the operation of the groats mill in various adapted spaces.
- The operation of the groats mill is automatic.
- Reliability of the equipment of the groats mill ensures its uninterrupted and long-lasting operation.
- Efficient processing of low-grain cereals without reducing the quality of the groats.
- Assembly and commissioning of the groats mill within three days.
